iBurner I²C Bus EEPROM Programmer Software (V3.3)

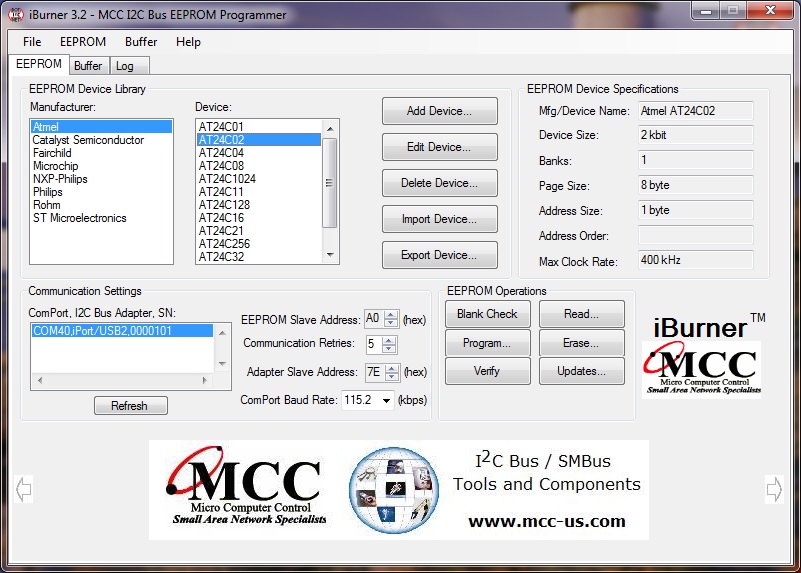

iBurner EEPROM Programming Setup

Introducing iBurner™ V3.3, our free I²C EEPROM programming software package.

iBurner is our I²C Bus Serial EEPROM Programmer software package for Windows that provides a quick and easy way to blank-check, program, read, and verify a wide variety of I²C Bus EEPROMs. iBurner includes a device library with many popular I²C EEPROM devices, and supports adding your own additional devices.

iBurner V3.3 adds:

Support for our iPort/AI 2 RS-232 to I²C Bus adapter.
Support for our iPort/LAN 2 Ethernet to I²C Bus adapter.
Support for our i2cStick 2 USB to I²C Bus adapter.

Supported I²C Bus EEPROM Device Database (iBurner Device Database).

PRODUCT HIGHLIGHTS

iBurner supports these I²C Bus EEPROM programming activities:

Erase
Blank-check
Program
Read
Verify

Built-in and Customizable I²C EEPROM Device Database.
Configurable EEPROM Bank, Page, and Word Address size.
Configurable EEPROM I²C Bus Clock Rates.
Built-in EEPROM Checksum Calculator.
EEPROM Programming Automation Script Builder.
File Formats:

Hex
S-Record
Binary

In-system Programming on an Active Single/Multi-master I²C Bus.
7-bit I²C Bus EEPROM Addressing.
Target Reset Control via Host Adapter /INT signal.
Automatic Logging of Programming Operations.
Compatible with MCC's ASCII-text based I²C Bus Host adapters.

User's Guide (PDF)

Release History

Supported Host Adapters:

Update Distribution/Licensing:

free of charge

System Requirements:

Windows XP, Vista, 7, 8, 8.1, 10
MS.NET Framework V2 or higher.
Supported MCC I²C Bus host adapter (See Supported Host Adapters above).
MCC I²C Bus host adapter driver software (For USB and Ethernet based adapters. See Supported Host Adapters above).

Download and Installation Instructions:

To install this version of iBurner on your computer, follow these instructions:

Click the Download link below and save the file to your download or a temporary folder on your Windows based PC.
After the download is complete, Double-click the file to install. Follow on screen instructions.
After installation, click Start | Programs | iBurner | iBurner to start the program.
See the User's Guide for additional instructions.

Click to Download iBurner3_3Setup.msi

Do you find iBurner useful? We would like your Feedback.
